Store Withdrawals
Path · Inventory > Withdrawal
This screen is used to register and manage records of stock withdrawn from a store (retail outlet) to an external destination.
Available stock is deducted as soon as a withdrawal is registered, and on-hand stock is deducted when it is completed.
After registration, the withdrawal is marked complete once an administrator clicks
the [Confirm Withdrawal] button on the withdrawal detail screen.
💡 Key Features
✅ Five withdrawal types are supported: Disposal · Sample · Return · Transfer · Other.
✅ Available stock is deducted the moment a withdrawal is registered, which prevents double shipping.
✅ Warehouses integrated with a WMS are completed by a WMS callback,
while stores are completed manually with the [Confirm Withdrawal] button.
✅ When you register a Return-type withdrawal, the supplier information can be loaded automatically.
⚠️ Once a withdrawal has been canceled or completed, only the Note field can be edited.
📌 User Flow (Store Withdrawal)
Go to Store > Withdrawal → click the [Create Store Withdrawal] button
Select the withdrawal type and enter the items and quantities (available stock is deducted immediately)
Save, complete the physical withdrawal → the store administrator clicks [Confirm Withdrawal]
→ status becomes Completed (on-hand stock deducted)

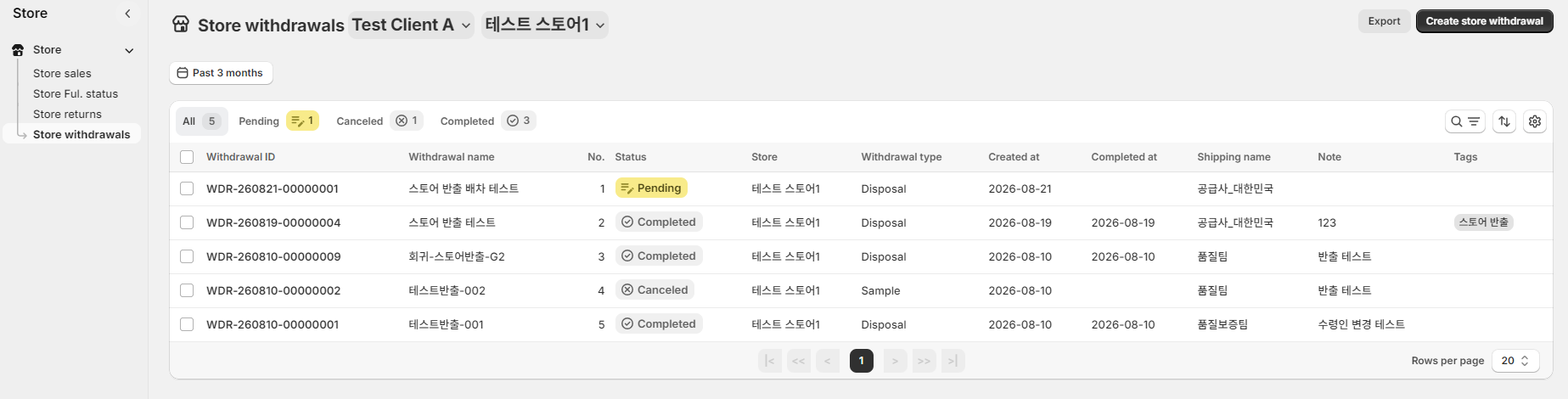

📋 Withdrawal List
Step 1. Understanding Withdrawal Statuses
Status | Description | Inventory Impact |
|---|---|---|
Pending | Registration complete, withdrawal in progress | Available stock is deducted immediately on creation |
Completed | Withdrawal completed at the store | On-hand stock deducted (final status) |
Canceled | Cancellation complete | Available stock restored (final status) |
💡 Inventory Deduction Summary
On registration (Pending) → available stock deducted immediately
On completion (Completed) → on-hand stock deducted
On cancellation (Canceled) → available stock restored
Step 2. List Columns
Column | Description |
|---|---|
Withdrawal ID | Number automatically assigned by MOMS. Click it to open the detail screen |
Withdrawal Name | Name of the withdrawal |
Withdrawal Status | Pending / Completed / Canceled badge |
Withdrawal Type | Disposal / Sample / Return / Transfer / Other |
✏️ Creating & Editing a Withdrawal
Step 1. Withdrawal Basics
Field | Required | Description |
|---|---|---|
Withdrawal ID | — | Assigned automatically on save |
Withdrawal Name | ✅ | Free text |
WMS | ✅ | Select the location (warehouse) and the WMS |
Withdrawal Type | ✅ | Disposal / Sample / Return / Other |
Withdrawal Reason Detail | — | Enter the reason for the withdrawal |
Step 2. Recipient Information
💡 When the Return type is selected, the [Load Supplier Information] button fills in the supplier's address automatically.
Step 3. Entering Withdrawal Items
Field | Description |
|---|---|
SKU Search | Search by SKU name or code; multiple SKUs can be added |
Quantity | The current available stock is shown as you enter a quantity. Entering more than the available stock is blocked |
Subtotal / Total | Calculated automatically as quantities are entered |
⚠️ If the quantity entered exceeds the current available stock, saving is blocked. Check the available stock and adjust the quantity.
Step 4. Delivery Information
Field | Description |
|---|---|
Delivery Type | Direct Delivery / Carrier / Vehicle Dispatch |
Delivery Details | Tracking number, carrier name, and so on. Once it is confirmed in the WMS, you can see the details entered by the warehouse operator |
Step 5. Buttons by Status
Status | Available Buttons |
|---|---|
Pending | [Save], [Cancel Withdrawal] |
Completed | [Save] (only the Note can be edited) |
Canceled | [Save] (only the Note can be edited) |
💡 Store withdrawals only: clicking [Confirm Withdrawal] while the status is Pending switches it to Completed and deducts the on-hand stock. Warehouse withdrawals are switched automatically by a WMS callback.
🏪 Withdrawal vs Store Withdrawal
Item | Warehouse Withdrawal (Inventory > Withdrawal) | Store Withdrawal (Store > Withdrawal) |
|---|---|---|
Completion method | Completed once the WMS warehouse operator confirms it | Switched manually by the store administrator with the [Confirm Withdrawal] button on the withdrawal detail screen |
View scope | All warehouses | Only the store in charge |
